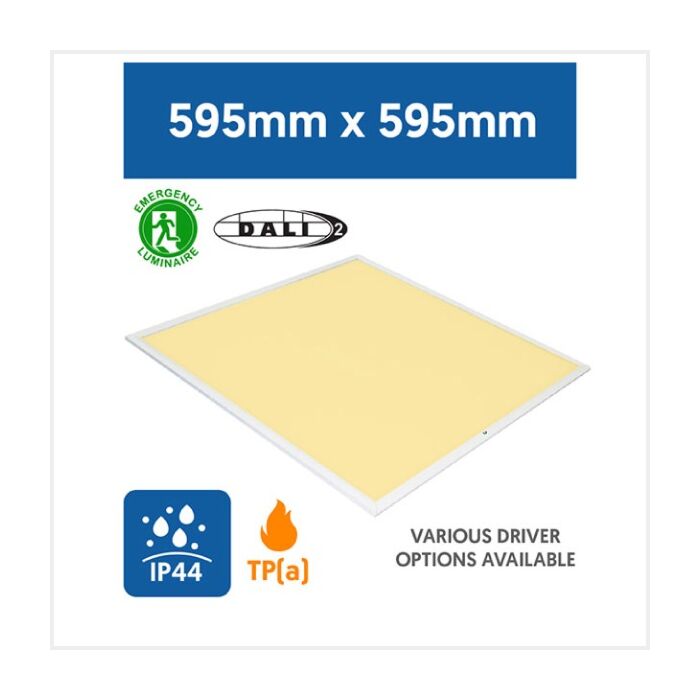

Lynx Modular Panel [6x6] (Warm White, Emergency)
- Integral emergency [indicator in frame]
- Dimmable [1-10v, Phase Cut, Corridor, DALI, Switch Dim, DSI, IOT]
Contact 0345 863 9750 for availability
SKU
LYNX-ADV-25-6X6WW/EM
Click to copy
✔ Copied!
Product Details
| Power | 25W |
|---|---|
| LED Chipset | Samsung |
| Driver Manufacturer | Tridonic |
| CRI | >85 |
| Output | 3375Lm (Emergency 405Lm) |
| Efficacy | 135 Lm/cW |
| Power Factor | 0.95 |
| IP Rating | IP44 |
| Beam Spread | 160° |
| Kelvin | 3000K |
| Materials | High Grade 6063 Aluminium |
| Diffuser | Opal |
| Operating Temperature | -20 to 50 °C |
| Input Voltage | AC 200-240V, 47-63Hz |
| Dimension | 595 x 595 x 10.5mm |
| Colour | Warm White |
| Emergency Option | Yes |
