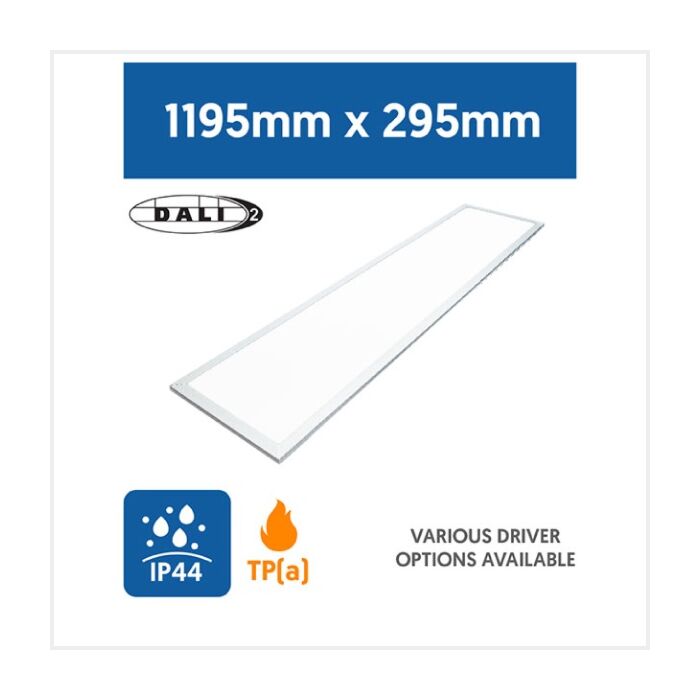

Lynx Modular Panel [12x3] (Cool White, Tridonic)
- Integral emergency [indicator in frame]
- Dimmable [1-10v, Phase Cut, Corridor, DALI, Switch Dim, DSI, IOT]
Contact 0345 863 9750 for availability
SKU
LYNX-ADV30-12X3CW/TD
Click to copy
✔ Copied!
Product Details
| Power | 30W |
|---|---|
| LED Chipset | Samsung |
| Driver Manufacturer | Tridonic Dimmable |
| CRI | >85 |
| Output | 3900Lm |
| Efficacy | 130 Lm/cW |
| Power Factor | 0.95 |
| IP Rating | IP44 |
| Beam Spread | 160° |
| Kelvin | 6000K |
| Materials | High Grade 6063 Aluminium |
| Diffuser | Opal |
| Operating Temperature | -20 to 50 °C |
| Input Voltage | AC 200-240V, 47-63Hz |
| Dimension | 1195 x 295 x 12mm |
| Colour | Cool White |
| Emergency Option | No |
