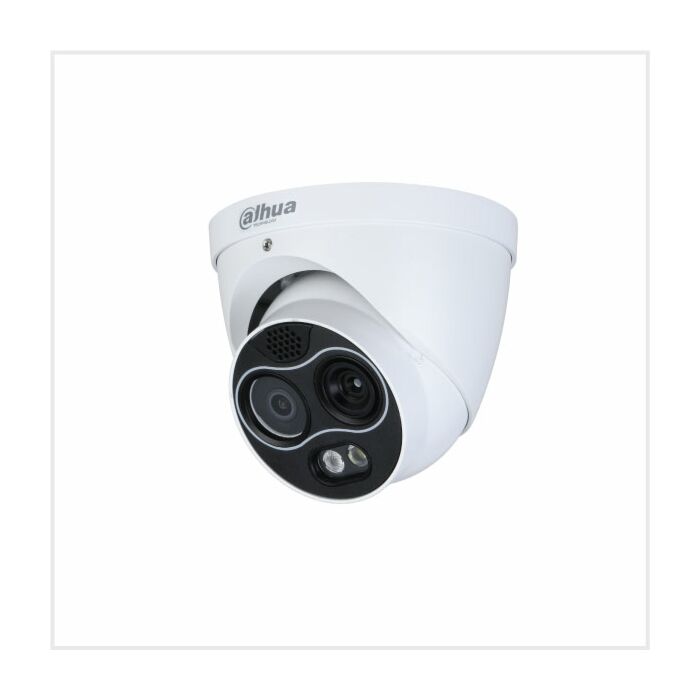

Dahua Radiometry Eyeball Camera
Vanadium oxide uncooled focal plane detector.
4Megapixel progressive scan CMOS.
AI functions: heat detection, tripwire, human/vehicle classificati...
Vanadium oxide uncooled focal plane detector.
4Megapixel progressive scan CMOS.
AI functions: heat detection, tripwire, human/vehicle classification, smoking detection, and call detection.
Remote auxiliary management.
Dual image fusion (visible and thermal channels).
Wide input voltage 12 VDC ± 20%, and PoE.
IP67 rated.
In Stock
| Store | Stock |
|---|---|
| PureTech HQ Portsmouth | 20+ |
| PureTech Security Derby | Available to order |
SKU
DHI-TPC-DF1241-B7F8-DW-S2
👀 27 people have viewed this product in the last 7 days.
Product Details
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Turret |
| Resolution | 4MP |
| Colour | White |
| Lens | 8mm |
| Lens Type | Thermal |
| Camera Power Consumption | Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE) |
| Camera Power Supply | 12 VDC, 1.2 A ± 20%; PoE |
| Effective Pixels | 2336 × 1752 |
| Minimum Illumination | Colour: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| Day / Night | Auto (ICR); Colour; B/W |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Working Enviroment | –30 to 60°C |
| Ingress Protection | IP67 |
| Dimensions | 122 × 122 × 112mm |
| Max IR Length | 30m |
| Camera Type | IP |
| Lighting Type | IR/THERMAL |
| Lens Size | 7MM/8MM |
