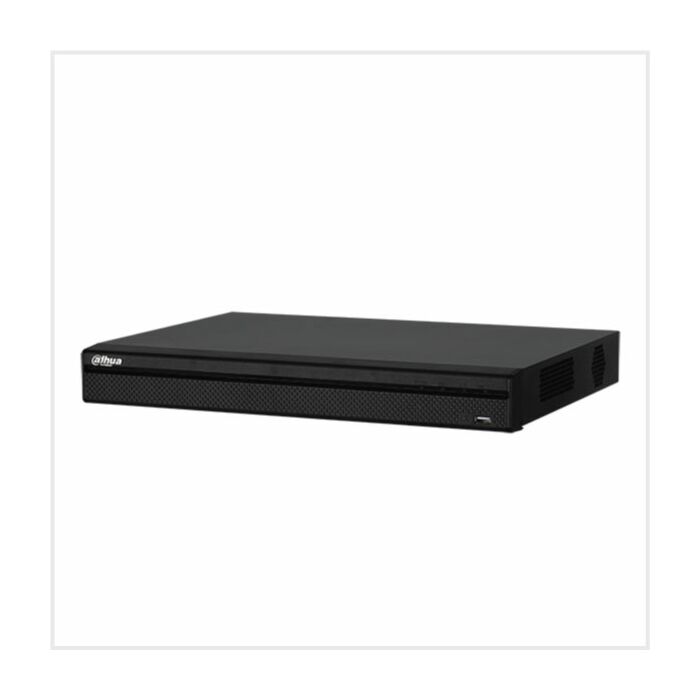

Dahua 16 Channel 5MP 1080p DVRs
H.265+/H.265 dual-stream video compression
Supports Full-channel AI Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera ...
H.265+/H.265 dual-stream video compression
Supports Full-channel AI Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
Up to 4 channels video stream (analogue channel) Perimeter Protection
Up to 16 channels video stream (analogue channel) SMD Plus
Up to 2 channels video stream (analogue channel) human face recognition
IoT & POS functionalities
In Stock
| Store | Stock |
|---|---|
| PureTech HQ Portsmouth | 100+ |
| PureTech Security Derby | 2 |
SKU
DH-XVR5216AN-I3
Product Details
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max. full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
| Manufacturer | Dahua |
|---|---|
| Camera Type | Analogue |
| Colour | Black |
| Channels | 16CH |
| HDD/SATA Ports | 2 |
| Resolution | 5MP |
| Case Size | 1U |
| Video Output | 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode. |
| Onvif | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Audio Input | 1-channel RCA (external) 16-channel BNC (coaxial audio) |
| Audio Output | 1-channel RCA |
| Audio Compression | G.711A/G.711u/PCM |
| Alarm Input | Motion detection, video loss, tampering |
| Alarm Output | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Network Interface | Chrome, IE9 or above, Firefox |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| Power | DC12V, 4A |
| Dimensions | 375.0 × 289.4 × 53.0mm |
