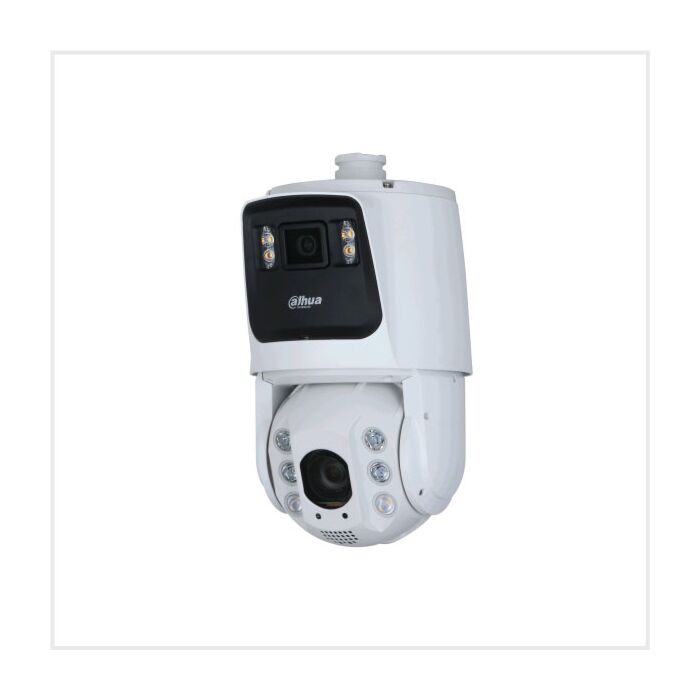

Dahua 4MP 24x Starlight IR WizMind Network Panoramic + PTZ Camera
- Panoramic: 1/1.8" 4Megapixel F1.0 STARVIS™ CMOS Detail: 1/2.8" 4Megapixel STARVIS™ CMOS
- 24× optical zoom, 16× digital zoom
- Starlight+ technology
- Max. 25/30 fps@4 MP
- IR distance up to 150 m
- Auto-tracking
- Perimeter protection
- Sound and light alarm
Contact 0345 863 9750 for availability
Product Details
With its industry-leading deep learning algorithm, the camera has advanced monitoring functions and strong detection capabilities. It is equipped with GPU chip and Smart Codec (H.265), making it highly efficient at encoding for improved video quality with reduced bandwidth and storage requirements. The camera supports smart tracking, seeing both the panorama (complete) and detail (clear) with one product. It also supports monitoring and detection of multiple perimeters, and can perform large-scale detection through its 4 mm fixed focal. Detection is combined with sound and light alarm, broadcasting multiple warning recordings, which can be applied to different scenarios.
| Camera Body Style | PTZ |
|---|---|
| Resolution | 4MP |
| Colour | White |
| Lens | Panoramic: 4 mm Detail: 4.8 mm–115 mm |
| Lens Type | Panoramic |
| Camera Power Consumption | Basic: 20 W Max.: 45 W (illuminator + heater + PTZ working + sound and light alarm) |
| Camera Power Supply | 36 VDC, 2.23 A (± 25%) (included) |
| Image Sensor | Panoramic: 1/1.8" CMOS Detail: 1/2.8" CMOS |
| Effective Pixels | Panoramic: 2560 (H) × 1440 (V) Detail: 2560 (H) × 1440 (V) |
| Minimum Illumination | Panoramic: Colour: 0.001 lux@F1.0 B/W: 0.0001 lux@F1.0 0 lux (white light on) Detail: Colour: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Day / Night | Panoramic: Colour; B/W Detail: Auto (ICR); Colour; B/W |
| White Balance | Panoramic: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Working Enviroment | –40 to 65 °C |
| Ingress Protection | IP66 |
| Dimensions | 358 × Φ202 mm |
| Max IR Length | 150m |
| LED Length | Up to 30m |
| Camera Type | IP |
| Lighting Type | Smart Dual Light |
| Lens Size | 24X |
| Built-in Audio | Two Way Talk |
| IR Length | Up to 150m |
