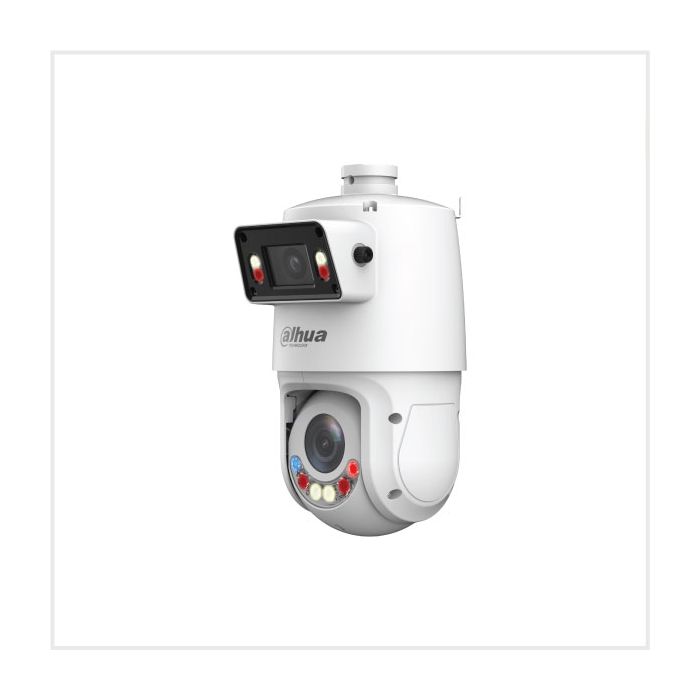

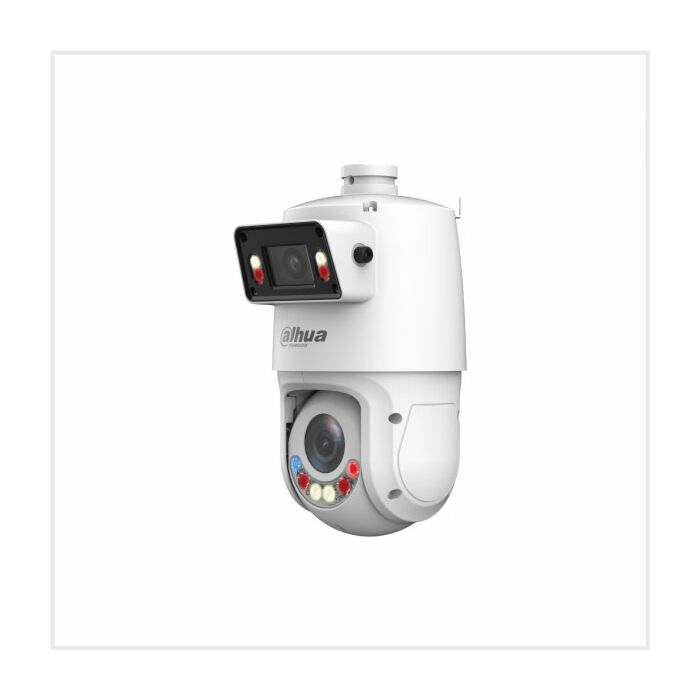

Dahua X-Spans 4MP+4MP 25x TiOC WizSense Network PTZ Camera
Panorama: 1/2.8" 4Megapixel F1.0 CMOS.
Detail: 1/2.8"4Megapixel STARVIS™ CMOS.
25x optical zoom.
Max. 25/30fps@4M.
IR distance up to 100 m.
Aut...
Panorama: 1/2.8" 4Megapixel F1.0 CMOS.
Detail: 1/2.8"4Megapixel STARVIS™ CMOS.
25x optical zoom.
Max. 25/30fps@4M.
IR distance up to 100 m.
Auto tracking 3.0.
Smart tracking.
Perimeter protection.
Active deterrence.
Smart dual light +.
In Stock
| Store | Stock |
|---|---|
| PureTech HQ Portsmouth | 100+ |
| PureTech Security Derby | 6 |
SKU
DH-SDT4E425-4F-GB-A-PV1-0400
👀 61 people have viewed this product in the last 7 days.
Product Details
Designed with more lens than the conventional PTZ camera, the X-Spans series camera captures an expansive view, producing wide, vivid images. It has a combined power of the panoramic and detail camera in its structure and is highly cost-effective, greatly reducing the installation cost of security systems. It also leverages its two cameras to perform smart tracking, and has an independent mode that allows you to separately use each camera
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | PTZ |
| Resolution | 4MP |
| Colour | White |
| Lens | Panorama: 2.8mm; Detail: 5 mm-125 mm |
| Lens Type | Dual Lens |
| Camera Power Consumption | Basic: 12 W Max. (Basic power consumption + illuminator+sound and light warning +PTZ operation + Heater ): 25 W (12 VDC) |
| Camera Power Supply | 12 VDC, 3 A ± 10%; PoE+ (802.3at) |
| Image Sensor | Panorama: 1/2.8" CMOS; Detail: 1/2.8" CMOS |
| Effective Pixels | Panorama: 2560 × 1440; Detail: 2560 × 1440 |
| Minimum Illumination | Panorama: 0.001 lux@F1.0 (Colour, 30 IRE); 0.0005 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on); Detail: 0.005 lux@F1.6 (Colour, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Day / Night | Auto (ICR)/Colour/B/W |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Working Enviroment | –40 to 65°C |
| Ingress Protection | IP66 |
| Dimensions | 160.0 × 184.4 × 304.6mm |
| Max IR Length | Panorama: 30m (IR); 30m (white light); Detail: 100m (IR) 50m (white light) |
| Camera Type | IP |
| Lighting Type | Smart Dual Light |
| Lens Size | 25X |
| Built-in Audio | 1 AUDIO INPUT |
| IR Length | Up to 100m |
