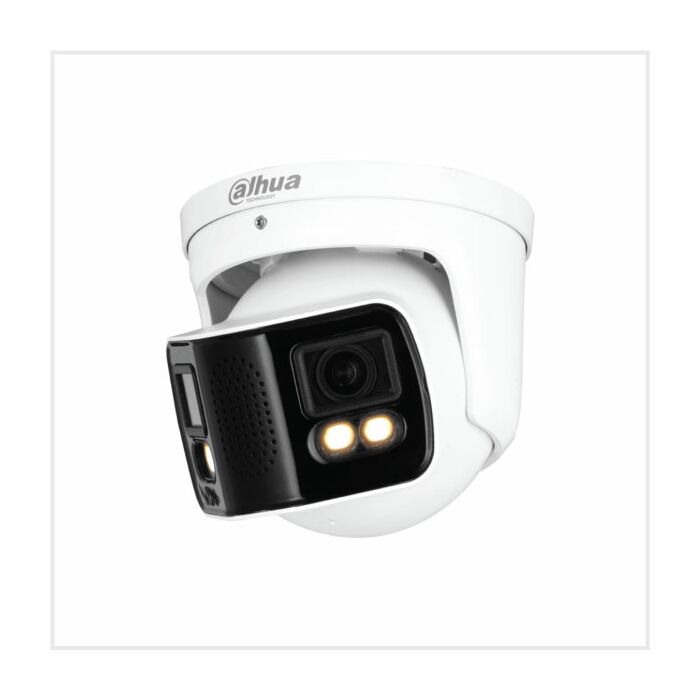

2x4MP Full-colour Duo Splicing WizMind Active Deterrent Network Camera
Outputs 180° wide angle splicing image
Outputs max. 8 MP (4096 × 1800)@25 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in war...
Outputs 180° wide angle splicing image
Outputs max. 8 MP (4096 × 1800)@25 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light, and the max. illumination distance is 40 m
12 VDC/PoE power supply, easy for installation
IP67 protection
EPTZ: Enlarge and track the targets of intelligent alarms
SMD3.0
Check Lead Times
SKU
DH-IPC-PDW5849-A180-E2-ASTE
Product Details
With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Turret |
| Resolution | 8MP |
| Colour | White |
| Lens | 3.6mm |
| Lens Type | Fixed |
| Camera Power Consumption | Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE) |
| Camera Power Supply | 12 VDC (±30%)/PoE+ (802.3at)/ePoE |
| Image Sensor | Dual 1/1.8" CMOS |
| Effective Pixels | 4096 (H) × 1800 (V) |
| Minimum Illumination | 0.0005 lux@F1.0 (Colour, 30 IRE) 0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day / Night | Colour/B/W |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Working Enviroment | –40 to +60 °C |
| Ingress Protection | IP67 |
| Dimensions | Φ122 × 131.9 mm |
| Max IR Length | 40m |
| LED Length | Up to 40m |
| Camera Type | IP |
| Lighting Type | Full Colour |
| Lens Size | 3.6mm |
