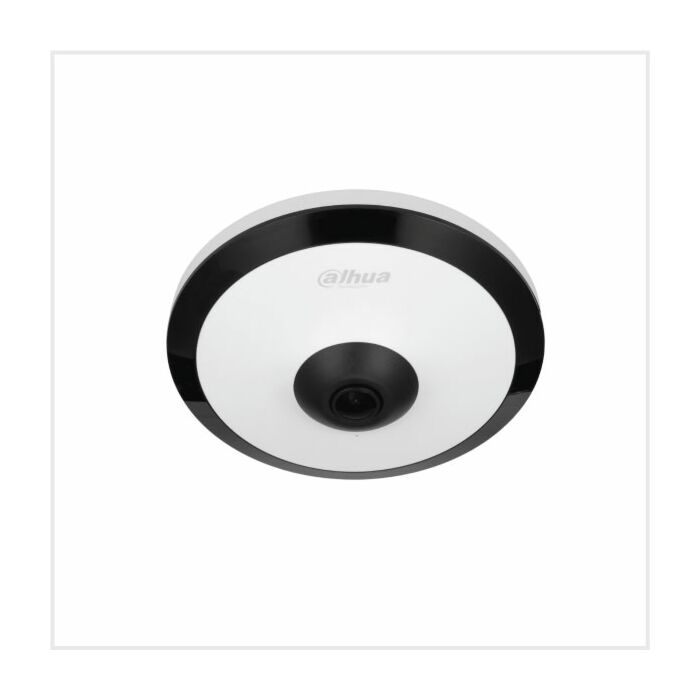

Dahua 5MP WDR Camera Network Camera
5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592 × 1944) @25/30 fps
H.265 codec, high compression rate...
5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592 × 1944) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in efficient IR illuminator, and the max. illumination distance: 10 m · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire, people counting in area
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power supply, easy for installation
Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
In Stock
| Store | Stock |
|---|---|
| PureTech HQ Portsmouth | 20+ |
| PureTech Security Derby | Available to order |
SKU
DH-IPC-EW5541P-AS
Product Details
With fisheye lens, Dahua Fisheye series camera can realize 360° surveillance, and it is widely applied in various scenes such as airports, shopping centres, banks and hotels.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Fisheye |
| Resolution | 5MP |
| Colour | White |
| Lens | 1.4mm |
| Lens Type | Panoramic |
| Camera Power Consumption | Basic power consumption: 3.6W (12V DC); 4.4W (PoE) Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE) |
| Camera Power Supply | 12V DC/PoE |
| Image Sensor | 1/2.7" 5Megapixel progressive CMOS |
| Effective Pixels | 2592 × 1944 |
| Minimum Illumination | 0.006 Lux@F2.0 (Colour, 30IRE) 0.0006 Lux@F2.0 (B/W, 30IRE) 0 Lux (Illuminator on) |
| Day / Night | Auto (ICR)/Colour/B/W |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Working Enviroment | –10 to 50°C |
| Dimensions | 44.6 × Φ126.2 mm |
| Max IR Length | 10m |
| Camera Type | IP |
| Lighting Type | Fisheye |
| Lens Size | 1.4MM |
| Built-in Audio | No |
| IR Length | 10M |
