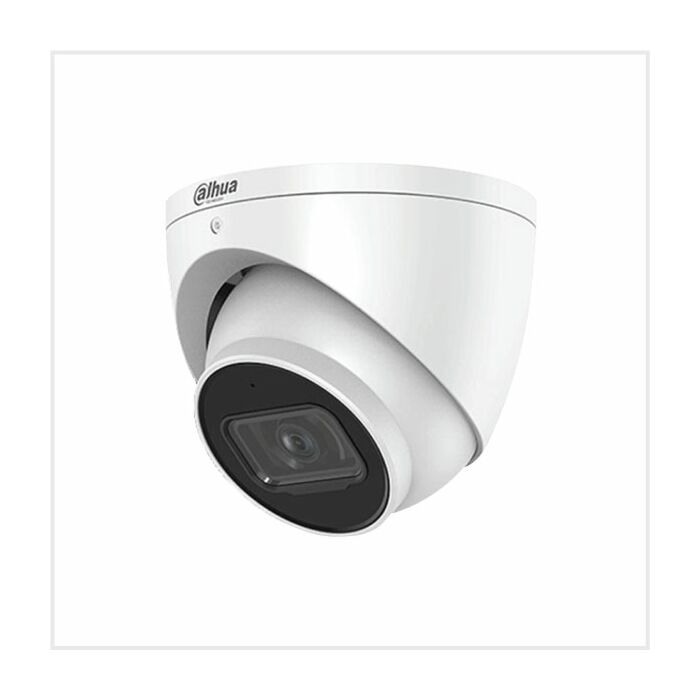

Dahua 5MP IR Fixed-focal WizMind Network Camera
5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 5 MP (2960 × 1668) @25/30fps.
Built-in IR LED, and the max. ...
5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 5 MP (2960 × 1668) @25/30fps.
Built-in IR LED, and the max. illumination distance is 50 m.
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
12 VDC/PoE power supply; ePoE.
IP67 protection.
SMD 3.0.
In Stock
| Store | Stock |
|---|---|
| PureTech HQ Portsmouth | 20+ |
| PureTech Security Derby | Available to order |
SKU
DH-IPC-HDW5541EMP-ASE-0280B-ATC-S3
Product Details
Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata, smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI-Powered Image technology and has the Deeplight night vision effect. The camera is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Turret |
| Resolution | 5MP |
| Colour | White |
| Lens | 2.8mm |
| Lens Type | Fixed |
| Camera Power Consumption | Basic: 4 W (12 VDC); 5.8 W (PoE) Max. (H.265+ WDR+ Intelligence on +IR on): 6.2 W (12 VDC); 8.3 W (PoE) |
| Camera Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | 0.0009 lux@F1.6 (Colour, 30 IRE) 0.0005 lux@F1.6( B/W, 30 IRE) 0 lux (Illuminator on) |
| Day / Night | Auto(ICR)/Colour/B/W |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Working Enviroment | -40 to +60°C |
| Ingress Protection | IP67 |
| Dimensions | 99.1 mm × Φ121.9 mm |
| Max IR Length | 50m |
| Camera Type | IP |
| Lighting Type | IR |
| Lens Size | 2.8mm |
| IR Length | Up to 50m |
