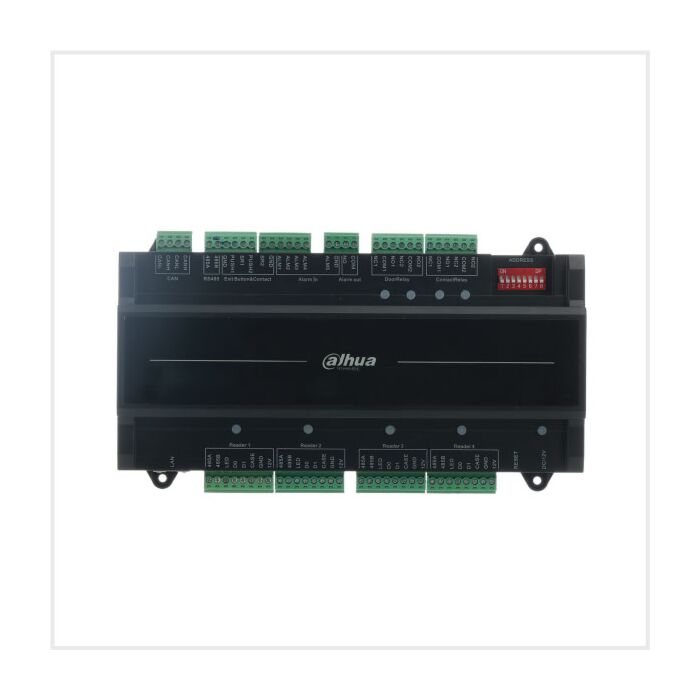

Dahua Two-Door Slave Access Control Module.
Dahua Two-Door Slave Access Control Module. Supports up to 20,000 card holders and 30,000 offline records with 4 reader ports (Wiegand or RS-485). Con...
Dahua Two-Door Slave Access Control Module. Supports up to 20,000 card holders and 30,000 offline records with 4 reader ports (Wiegand or RS-485). Connects to a master controller via CAN bus and supports card, password, fingerprint, and combination authentication. Features 9 inputs (2 door sensors, 2 exit buttons, 5 alarm inputs) and 5 relay outputs (2 door locks, 2 sensor triggers, 1 alarm), with anti-passback, multi-door interlock, and multi-person unlock functions.
Contact 0345 863 9750 for availability
SKU
DHI-ASC2102B-T
Click to copy
✔ Copied!
Product Details
Dahua Two-Door Slave Access Control Module. Supports up to 20,000 card holders and 30,000 offline records with 4 reader ports (Wiegand or RS-485). Connects to a master controller via CAN bus and supports card, password, fingerprint, and combination authentication. Features 9 inputs (2 door sensors, 2 exit buttons, 5 alarm inputs) and 5 relay outputs (2 door locks, 2 sensor triggers, 1 alarm), with anti-passback, multi-door interlock, and multi-person unlock functions.
| Access Control Type | Controllers & Readers |
|---|---|
| Camera Body Style | Surface-mount module |
