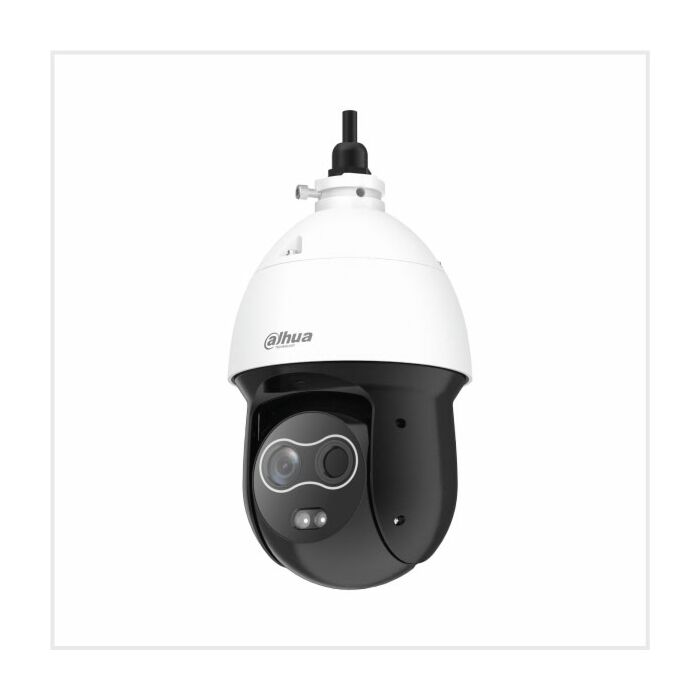

Dahua Thermal Network Hybrid Speed Dome Camera
Vanadium oxide uncooled focal plane detector.
4Megapixel progressive scan CMOS.
Offers various AI functions such as intrusion, target filtering, h...
Vanadium oxide uncooled focal plane detector.
4Megapixel progressive scan CMOS.
Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection.
Temperature measurement range of –20 °C to +550 °C (-4 °F to +1022 °F).
Built-in white light and speaker that produce light and sound alarms to deter intruders.
Built-in IR LED, and the max. illumination distance is 35 m.
Wide monitoring range: Pan: 0° to 360° endless tilt: –15° to +90°.
Dual image fusion (visible and thermal images).
12 VDC ± 20%/PoE+ power supply.
IP66 rated.
Contact 0345 863 9750 for availability
SKU
DHI-TPC-SD2241-TB3F4-DW-S2
Click to copy
✔ Copied!
Product Details
With its dual lens design, Thermal Network Hybrid Speed Dome Camera provides an all-in-one solution for video surveillance in outdoor and indoor scenarios. It adopts Thermal and Visible Technology to capture vivid, detailed images even in dark, small areas. Through its thermal camera, it can capture clear images even in poor or dark lighting, and can detect and reveal details through its visible camera that has Smart IR.
| Camera Body Style | Thermal |
|---|---|
| Resolution | 4MP |
| Colour | White |
| Lens | 3mm/4mm |
| Lens Type | Thermal |
| Camera Power Consumption | Max 24W |
| Camera Power Supply | DC 12V±15%/PoE+ |
| Image Sensor | 1/2.8 inch CMOS |
| Effective Pixels | 1920x1080 |
| Minimum Illumination | Colour: 0.005Lux; Black & white: 0.0005Lux; IR light (on): 0Lux |
| Day / Night | Auto (ICR); colour / B/W |
| White Balance | Auto/indoor/outdoor/tracking/manual/sodium lamp/natural/street light |
| Working Enviroment | -30 to +60°C |
| Ingress Protection | IP67 |
| Dimensions | 295 x Φ160mm |
| Camera Type | IP |
| Lighting Type | Smart Dual Light |
| Lens Size | 3MM/4MM |
| Built-in Audio | Two Way Talk |
| IR Length | Up to 35m |
