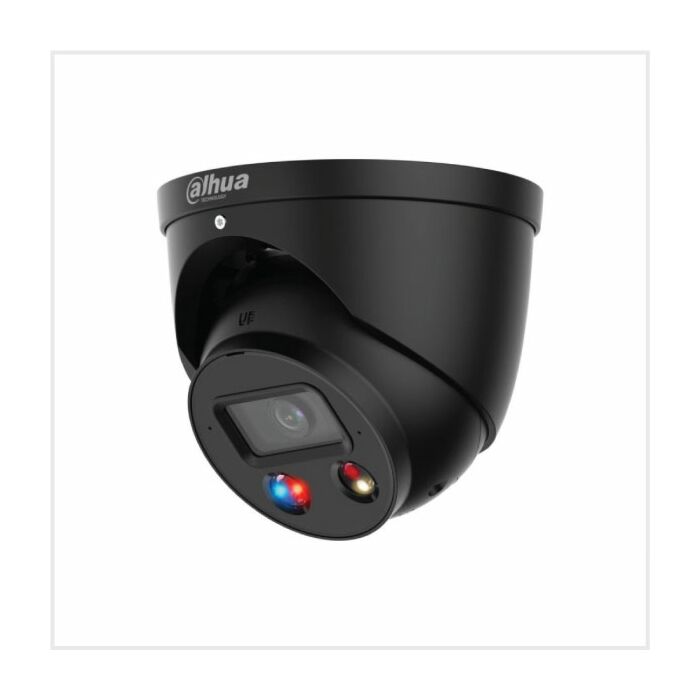

Dahua 5MP Active Deterrence Network Camera
5 MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160)@25/30 fps.
H.265 codec, high compression ...
5 MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 3.0.
One press arming/disarming through alarm input.
Contact 0345 863 9750 for availability
SKU
DH-IPC-HDW3549HP-AS-PV-0280B-S3G
Click to copy
✔ Copied!
Product Details
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
| Resolution | 5MP |
|---|---|
| Colour | Grey |
| Lens Type | Fixed |
| Camera Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE) Max. (H.265+main stream/IR intensity + warm light on): 7.8 W (12 VDC) 9.6 W (PoE) |
| Camera Power Supply | 12 VDC/PoE (802.3af) |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Minimum Illumination | 0.004 lux@F1.0 (Colour, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| Day / Night | Auto (ICR)/Colour/B/W |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Working Enviroment | –40 to +60 °C |
| Ingress Protection | IP67 |
| Dimensions | 110.9 × Φ122.0 mm |
| Max IR Length | 30m |
